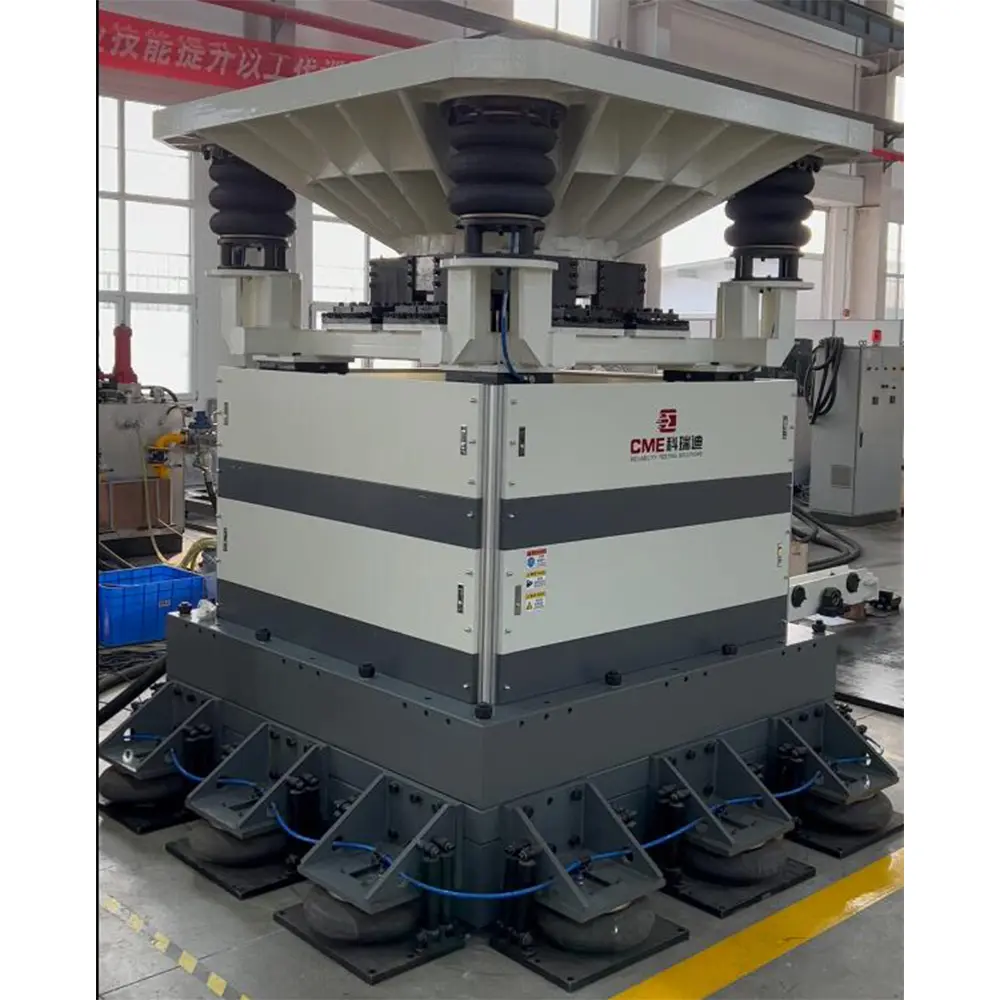

KRD70 Hydraulic Vibration Shaker

KRD70 series hydraulic vibration shaker is an electronic hydraulic servo vibration test machine with the advantages of fast response speed, high anti-load rigidity, flexible control mode, high performance, and high reliability.

The hydraulic vibration shaker is a device that converts and amplifies the energy of the electro-hydraulic servo valve and converts the energy of the high-pressure liquid into a dynamic test system for the reciprocating motion of the simple actuator. Similar to the function of the electric hydraulic vibration table, it can complete the functions of sinusoidal vibration, random vibration, transient shock, and road spectrum simulation. KRD70 series hydraulic vibration shaker is widely utilized for all kinds of products in aviation, marine, automotive, earthquake, packaging, transportation, and other industries. The vibration shaker system complies with the standard MIL STD-810, ASTM D4728, IEC 60068-2, and ISTA relevant standards.

FEATURES OF KRD70 HYDRAULIC VIBRATION SHAKER


  • Vertical, horizontal, bi-directional, or multi-axis vibration forms are available

  • It is especially suitable for vibration tests requiring low frequency and high force

  • Multiple functions: can complete sine, random, and road spectrum simulation

  • Windows-based stable control system, with a variety of test control functions

  • Equipped with a data interface, it is convenient to expand remote control and has remote real-time display system data and protection functions

  • With over displacement, over current, overload, overheating, cooling system protection circuit, leakage protection, drive power supply protection

TECHNICAL SPECIFICATIONS OF KRD70 HYDRAULIC VIBRATION SHAKER

Model

KRD

KRD

KRD

KRD

KRD

KRD

KRD

KRD

KRD

KRD

KRD

Parameters70-5K70-1T70-2T70-3T70-4T70-5T70-10T70-20T70-30T70-40T70-50T

Force

(KN)

5

10

20

30

40

50

100

200

300

400

500

Vibration Direction

Vertical/Horizontal

Vibration Mode

Sine, random, road spectrum simulation

Frequency Range

(Hz)

Sine

0.1~200

0.1~150

0.1~130

0.1~100

0.1~80

Random

0~300

0~200

0~150

Max. Load (kg)

100

200

400

600

800

1000

1500

3500

5000

7000

8000

Table Size

(mm)

600×600

800×800

1000×1000

1200×1200

1500×1500

1800×1800

2000×2000

2500×2500

3000×3000

Max. Displacement

(P-P) (mm)

100

Max. Velocity (m/s)

0.6

Weight

(kg)

2500

3000

3800

5000

6800

9500

9500

16,000

21,000

26,000

31,000

Working

Environment

Temperature range 0 ~ 40℃, Humidity≤80% (non-condensing)

Power Supply

3-phase AC 380V±10% 50Hz

Installation

Condition

Special foundation, optional free foundation

Standards

ISTA1~7  MIL-STD-810  IEC 60068-2  ASTM D4728

Note: 1. The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.

2. Force, displacement amplitude, table size and working frequency can be customized.


COMPOSITION OF KRD70 HYDRAULIC VIBRATION SHAKER

KRD70 hydraulic vibration shaker system includes a hydraulic vibration table, control cabinet, and oil source system.

KRD70 hydraulic vibration table is mainly composed of a table supporting mechanism, electro-hydraulic servo valve, actuator, working table, guide mechanism, oil filter, cooling system, etc.

When the hydraulic vibration test table vibrates vertically, it is driven by the vertical hydrostatic servo cylinder. When the horizontal vibration test is required, the hydrostatic servo cylinder can be turned over 90° and connected to the horizontal slip table to provide the drive. The hydraulic system and control system is controlled remotely by a computer.


COMPOSITION OF KRD70 HYDRAULIC VIBRATION SHAKER

CONTROL SYSTEM OF KRD70 HYDRAULIC VIBRATION SHAKER

KRD70 hydraulic vibration shake control system is mainly composed of a computer, display, acceleration sensor, and digital random vibration controller.

EHC-2000 electro-hydraulic servo control system, integrated motor remote start, automatic oil pressure adjustment, servo control, and vibration control, can comprehensively and intuitively display real-time oil pressure, voltage, current, and other alarm information.

Computer-controlled measurement, with a variety of test control functions, can display test data and curves in real time, store test results, and store and print test results.

Can complete sine, random, sine + random, random + random vibration control, classical shock control, resonance search and dwell, seismic wave simulation, and other controls.


ehc 2000 digital servo controller system
ehc 2000 digital servo controller system
software interface
software interface
